Fully Automatic Mesh Belt Dryer The Perfect Solution For Time-Saving Drying

Product Details

Place of Origin: Shandong, China

Brand Name: Junxu

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $16,000.00/pieces 1-1 pieces

Get Best Price

Product Details

Product Description

Highlight:

Type:	Mesh Belt Dryer	Application:	Food Processing
Condition:	New	Voltage:	Voltage Customization
Power:	18.50KW	Dimension(LWH):	100020002400
Key Selling Points:	Automatic	Warranty:	1 Year
Weight (KG):	10000	Applicable Industries:	Food Products Factory, Vegetable Processing Enterprises, Agricultural And Sideline Product Companies, Fruit And Vegetable Production Company
Showroom Location:	Africa, Vietnam	Marketing Type:	Hot Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Other, Engine
Evaporation Capacity(kg/h):	Customization	Heating Method:	Customization
Product Name:	Tunnel Conveyor Mesh Belt Dryer	Material:	Customization
Function:	Drying+Dehumidity	Usage:	Drying Wet Raw Material
Heating Source:	Customization	Advantage:	Easy Operation High Efficiency
Product Type:	Food Mesh Belt Dryer	Color:	Customized Color
MOQ:	1 Set	Key Words:	Automatic Mesh Belt Dryer Machine

Type:	Mesh Belt Dryer
Application:	Food Processing
Condition:	New
Voltage:	Voltage Customization
Power:	18.50KW
Dimension(LWH):	100020002400
Key Selling Points:	Automatic
Warranty:	1 Year
Weight (KG):	10000
Applicable Industries:	Food Products Factory, Vegetable Processing Enterprises, Agricultural And Sideline Product Companies, Fruit And Vegetable Production Company
Showroom Location:	Africa, Vietnam
Marketing Type:	Hot Product
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year
Core Components:	Other, Engine
Evaporation Capacity(kg/h):	Customization
Heating Method:	Customization
Product Name:	Tunnel Conveyor Mesh Belt Dryer
Material:	Customization
Function:	Drying+Dehumidity
Usage:	Drying Wet Raw Material
Heating Source:	Customization
Advantage:	Easy Operation High Efficiency
Product Type:	Food Mesh Belt Dryer
Color:	Customized Color
MOQ:	1 Set
Key Words:	Automatic Mesh Belt Dryer Machine

Fully Automatic Mesh Belt Dryer The Perfect Solution For Time-Saving Drying

Specification

Machine Type	Mesh belt dryer
Marketing Type	Popular products
Weight (KG)	Over 10000 kilograms
Power (kW)	18.5KW
Key Selling Points	Fully automatic control drying time is short, does not crack or deform, efficient and energy-saving, does not change color, saves labor, and operates on assembly lines
Showroom Location	Africa Vietnam
Applicable Industries	Food factories, pharmaceutical factories, vegetable processing enterprises, agricultural and sideline product companies, fruit and vegetable production companies

Product Description

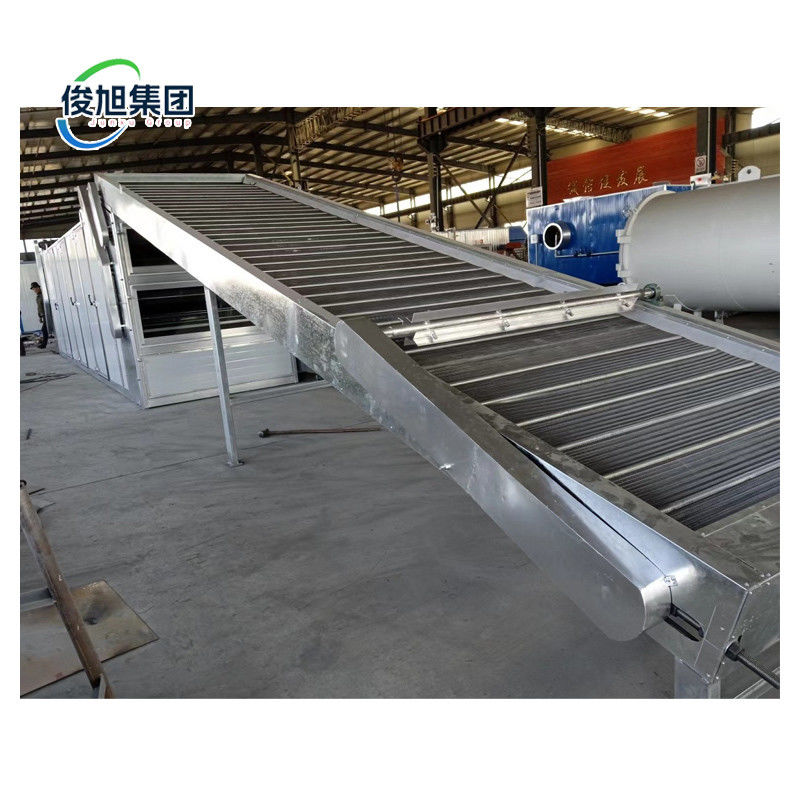

Mesh Belt Dryer Equipment

Mesh belt dryer is a batch and continuous production drying equipment mainly used for drying sheet, strip, and granular materials with good breathability. The compressed finished products are directly conveyed to the flat conveyor through the conveyor, and the finished balls are evenly distributed on the dryer through the scraper at the upper end of the flat conveyor, improving the breathability of the finished materials and achieving the drying effect. This can ensure continuous production of the equipment, achieve automatic and manual temperature control, and achieve stepless speed regulation of the transmission speed.

The product is suitable for drying, dehydration, and solidification of various shapes of products such as segmented, flake, and blended. It is to evenly lay the materials on the mesh belt, which is made of 12-60 mesh steel wire mesh belt. The mesh belt is dragged back and forth in the dryer by a transmission device, and hot air flows through the materials. Water vapor is discharged from the dehumidification hole to achieve the purpose of drying. The length of the box body is composed of standard sections. In order to save space, the drying mechanism can be divided into multiple layers, commonly including two rooms and three floors, two rooms and five floors, with a length of 6-40m and an effective width of 0.6-3.0m.

Features: ※ The air volume, heating temperature, material residence time, and feeding speed can be adjusted to achieve drying effects. ※The equipment configuration is flexible and can use mesh belt flushing system and material cooling system. ※Most of the air is recycled, highly energy-efficient. ※The unique air distribution device ensures more even distribution of hot air and consistency of product quality. ※ The heat source can be matched with electric, coal, steam, thermal oil, or gas hot air stoves.

According to different materials, the dryer can be designed as: 1. Mesh belt type, mesh chain type, and mesh board type; 2. Single stage, two-stage, multi-level; 3. Single layer, double layer, and multi-layer types; 4. Parallel flow, counter flow, and mixed flow; 5. Single way emission type, multiple cycle type, etc.

Adapt to materials Dehydrated vegetables, pellet feed, monosodium glutamate, organic pigments, synthetic rubber, fibers, pharmaceuticals, medicinal herbs, small wood products, and various agricultural and sideline product processing.

Model	DW-1.2-8	DW-1.2-10	DW-1.6-8	DW1.6-10	DW-2-8	DW-2-10
Number of units	4	5	4	5	4	5
Bandwidth (m)	1.2	1.2	1.6	1.6	2	2
Drying section length	8	10	8	10	8	10
Auxiliary material thickness(mm)	10-80
Operating temperature (℃)	60-130
Steam pressure (Mpa)	0.2-0.8
Steam consumption (kg/h)	120-130	150-375	150-375	170-470	180-500	225-600
Drying time (h)	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.2-1.5
Dry strength (kgH2O/h)	60-160	80-220	75-220

Recommend Products

Company Profile

Certifications

Exhibition

Packing & Delivery

FAQ

Q: How could I get a sample? A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.

Q: Whether you could make our brand on your products? A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

Q: Whether you could make your products by our color? A: Yes, The color of products can be customized if you can meet our MOQ.

Q: How to guarantee the quality of your products? A: 1) Strict detection during production. 2)Strict sampling inspection on products before shipment and intact product packaging ensured.
