22KW Industrial Drying Box Automatic With Customizable Heating Source

Product Details

Place of Origin: Shandong, China

Brand Name: Junxu

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $10,000.00/pieces 1-1 pieces

Get Best Price

Product Details

Product Description

Highlight:

Type:	Industrial Dryer	Application:	Chemicals Processing, Food Processing
Condition:	New	Voltage:	Voltage Customization
Power:	22.00KW	Dimension(LWH):	10000-2000-2000
Key Selling Points:	Automatic	Warranty:	1 Year
Weight (KG):	6000	Applicable Industries:	Mining Company, Mining Enterprises, Chemical Enterprises, Feed Company, Iron Powder Company
Showroom Location:	Africa, Vietnam	Marketing Type:	Hot Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Other
Evaporation Capacity(kg/h):	Customization	Heating Method:	Customization
Product Name:	Industrial Drying Machine	Material:	Customization
Function:	Drying+Dehumidity	Usage:	Drying Wet Raw Material
Heating Source:	Customization	Feature:	High Efficiency Low Cost
MOQ:	1 Set	Keywords:	Rotary Dryer Machine
Raw Material:	Multiple Material	Color:	Customized Color

Type:	Industrial Dryer
Application:	Chemicals Processing, Food Processing
Condition:	New
Voltage:	Voltage Customization
Power:	22.00KW
Dimension(LWH):	10000-2000-2000
Key Selling Points:	Automatic
Warranty:	1 Year
Weight (KG):	6000
Applicable Industries:	Mining Company, Mining Enterprises, Chemical Enterprises, Feed Company, Iron Powder Company
Showroom Location:	Africa, Vietnam
Marketing Type:	Hot Product
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year
Core Components:	Other
Evaporation Capacity(kg/h):	Customization
Heating Method:	Customization
Product Name:	Industrial Drying Machine
Material:	Customization
Function:	Drying+Dehumidity
Usage:	Drying Wet Raw Material
Heating Source:	Customization
Feature:	High Efficiency Low Cost
MOQ:	1 Set
Keywords:	Rotary Dryer Machine
Raw Material:	Multiple Material
Color:	Customized Color

22KW Industrial Drying Box Automatic With Customizable Heating Source

Specification

Machine Type	Rotary Drum Dryer
Marketing Type	Popular products
Weight (KG)	Over 8000 kilograms
Power (kW)	22.00KW
Key Selling Points	Fully automatic control drying time is short, does not crack or deform, efficient and energy-saving, does not change color, saves labor, Large output
Showroom Location	Africa Vietnam
Applicable Industries	Mining companies, mining companies, chemical companies, feed companies, iron powder companies

Product Description

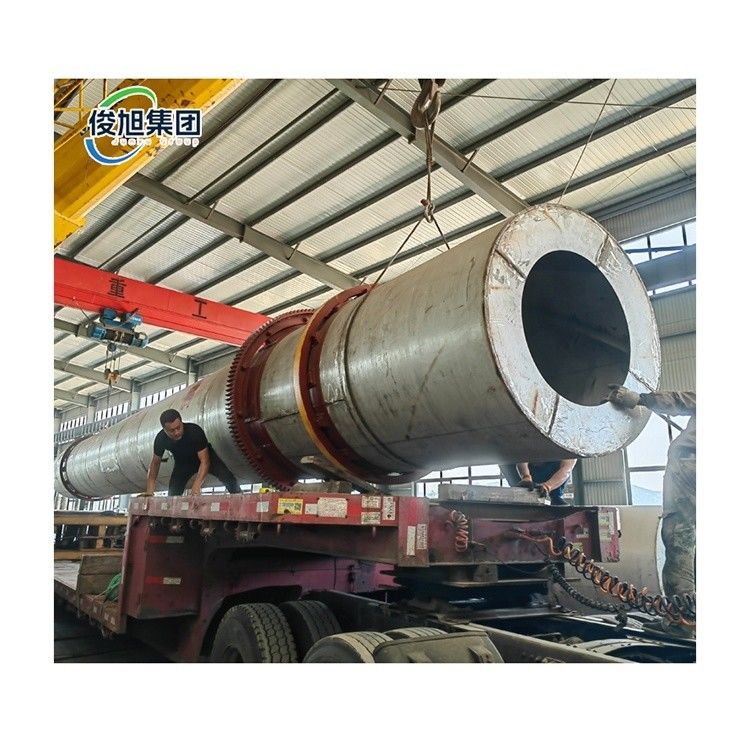

Introduction to rotary drum dryer

(1) Structure: The drum dryer consists of 1. a cylinder body; 2. Front roller ring; 3. Rear roller ring; 4. Gear; 5. Stop roller; 6. Trailing roller; 7. Pinion gear; 8. Discharge section; 9. Lifting plate; 10. Reducer; 11. Motor; 12. Hot air duct; 13. Feed chute; 14. The composition of the furnace body and other parts can also be designed according to user needs, such as gas generator, combustion chamber or supporting elevators, belt conveyors, quantitative feeders, cyclone dust collectors, induced draft fans, etc. (2) Working principle of drum dryer: It is to transport the wet material to be dried from the belt conveyor or bucket elevator to the hopper, and then enter the feeding end through the feeding pipeline through the feeding machine of the hopper. The slope of the feeding pipeline should be greater than the natural inclination angle of the material, so that the material can flow smoothly into the dryer. The dryer cylinder is a rotating cylinder that is slightly inclined to the horizontal line. The material is added from the higher end, and the heat carrier enters from the lower end, forming a countercurrent contact with the material. There are also heat carriers and materials flowing together into the cylinder. As the cylinder rotates, the material is subjected to gravity and moves to the lower end. During the forward movement of wet materials in the cylinder, the heat is directly or indirectly supplied by the heat carrier, allowing the wet materials to dry and then sent out through a belt conveyor or screw conveyor at the discharge end. There is a plate installed on the inner wall of the cylinder, which is used to pick up and scatter the material, increasing the contact surface between the material and the airflow, in order to improve the drying rate and promote the material to move forward. Heat carriers are generally divided into hot air, flue gas, etc. After the heat carrier passes through the dryer, a cyclone dust collector is generally required to capture the materials carried in the gas. If it is necessary to further reduce the dust content in the exhaust gas, it should also be discharged after passing through a bag filter or wet dust collector.

Product performance characteristics Large production capacity, capable of continuous operation; Simple structure, few faults, convenient operation, low maintenance cost, and stable operation; Widely applicable, it can dry powdery, granular, strip, and block materials with high operating flexibility. It allows for significant fluctuations in product output in production without affecting product quality, and is easy to clean.

Scope of product application

Mineral products: fluorite powder, quartz sand, graphite, garnet, barite, potassium sodium feldspar, mica powder, water slag, bentonite, zinc slag, clay, titanium concentrate, coal slurry, manganese ore, pyrite, limestone, river sand, blue charcoal, iron ore powder, etc. Chemical industry: sulfuric acid, alkali sulfide, Anfu powder, ammonium nitrate, urea, oxalic acid, potassium dichromate, polyvinyl chloride, nitrate phosphate fertilizer, calcium magnesium phosphate fertilizer, and compound fertilizer. Other: corn husks, soybean residue, cassava residue, garbage abrasives, matchsticks, sawdust, distiller's grains, feed, etc.

Recommend Products

Company Profile

Certifications

Exhibition

Packing & Delivery

FAQ

Q: How could I get a sample?
A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to
you within your first order.

Q: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

Q: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.

Q: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2)Strict sampling inspection on products before shipment and intact product packaging ensured.
